SPECIFICATIONS
Brand Name: GPD
GPD Model: MicroPC
Graphics Brand: Intel
Port: Card Reader
Port: 3.5 mm Audio Jack
Port: 1*USB3.1 Type-C
Port: 3*USB3.0
Port: RJ-45
Video Memory Capacity: Main memory allocated memory
Display Size: 6.0"
Display Ratio: 16:9
Max Turbo Frequency: 2.6Ghz
Base Frequency (GHz)4: 1.1GHz
Thermal Design Power: 10W
Type: Pocket Laptop
Dimensions (WxHxD): 162*99*25 mm
Expandable storage: YES
Operating System: Windows 10
Origin: Mainland China
Graphic Type: Integrated
Graphics Card Model: Intel UHD 600
Number of Cores: 4
Hard Drive Type: SSD
Memory Type: DDR4
Keyboards: TOUCHPAD
Keyboards: Backlit Keyboard
Screen Refresh Rate: 60Hz
Hard Drive Capacity: 256GB
Weight (Battery Included): ＜1.5Kg
CPU Brand/Model: Intel Celeron N4120
Panel Type: IPS
Touch Screen: no
RAM: 8GB
Body Material: TPU+Plastic
Thickness: ≥20mm
Feature: bluetooth
Feature: Backlit Keyboard
Optical Drive Type: None
Average Battery Life(in hours): 6-8
Certification: CE
Certification: RoHS
Certification: pse
Wireless Interfaces: Bluetooth 4.2
Display resolution: 1280x720
Keyboard backlit type: monochrome
Keyboard language: English
Hard Drive Interface: M.2
Battery Capacity（mAh）: 3100*2
Screen surface: MATT
Battery lifetime: up to 4 - 6 hour
Package: Yes
Processor Graphics: lntel UHD Graphics 600
HDMI-Compatible: YES
Graphics Base Frequency: 200.00MHz
Graphics Max Dynamic Frequency: 700.00MHz
Execution Unit: 12 EU
4K2K Outpt: 60Hz refresh rate
Memory: 8GB
Memory Types: LPDDR4
Hard Disk Specifications: M.22242 mm 256GB
Hard Disk Interface: NGFFM.2 Socket 2
Bluetooth: 4.2
Transfer Protocol: AHCI
Card Reader: Micro SDXC Max 2TB
Serial Interface: 1 x RS-232
Keyboard: QWERTY Back lit Keyboard
TouchPad: Support Left Button Scroll Wheel Right Button
Thermal Design: Active Cooling Method
Sensor: Hall Sensor
Power adapter: EU US AU UK JP
Warranty: 1 Year
If "Shop in Bundles" with MicroPC case in APP , you will get half price discount for the case
Overview
MicroPC is a handheld mini Laptop developed and designed by GPD company for industry professionals and various mobile scenarios. It only weighs 440g which has many interfaces. It can perfectly replace traditional notebooks for people that work in the communication, electric power, exploration, mining, archaeology, education training, manufacturing, service chain, call center, business services, public institutions, government military and many more fields.

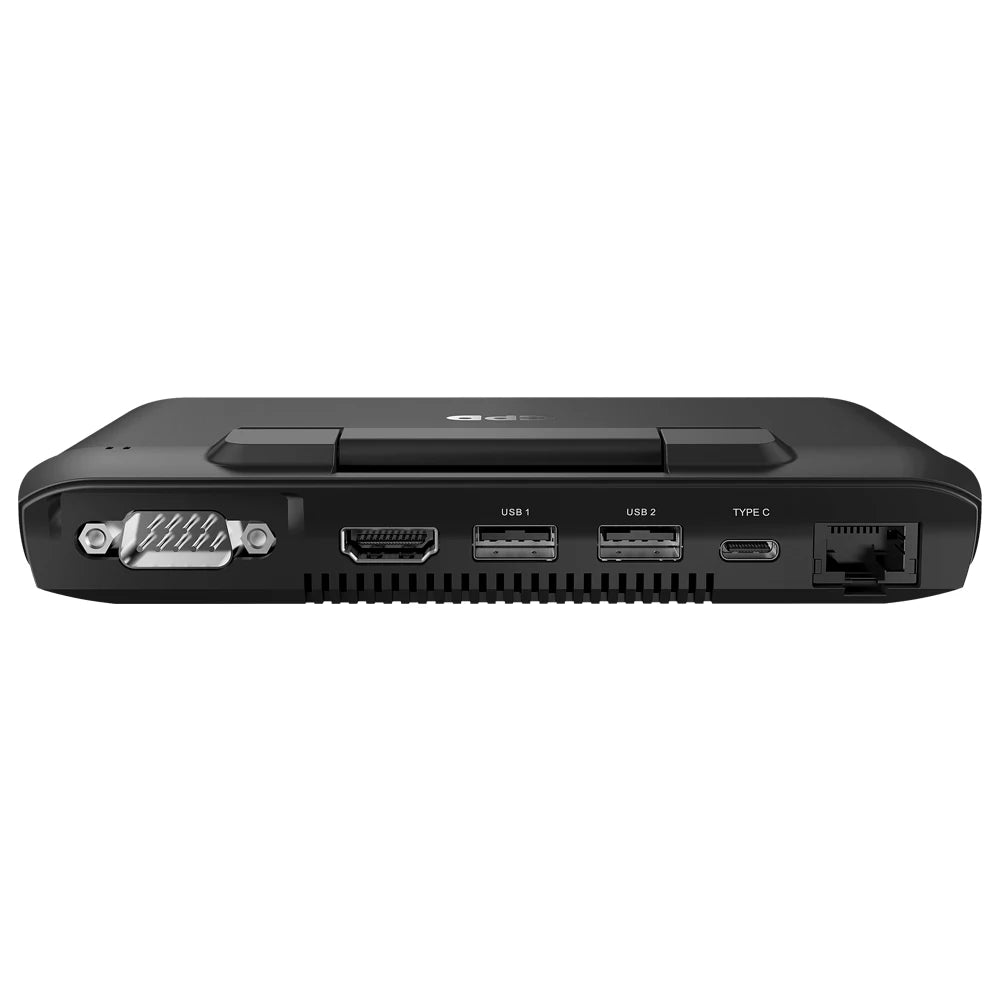

MicroPC Interface Diagram
The Back Product Application Fields
A multi-interface mobile productivity tool
Microsoft Surface Go is so small, lightweight, and affordable that it has been dubbed as the iPad 6 killer. However, 6" MicroPC is not only smaller than Surface Go but also has more interfaces. The palm-sized MicroPC is only 15mm in the thinnest part, weighs 440g and consumes only 10W for the thermal design, but its performance is as good as Microsoft Surface Go at a lower price. MicroPC is a mobile productivity tool suitable for each and every industry.
The Back Features of GPD MicroPC
1. Compatible for IT fields and more with its rugged exterior: Network communication, electric power, exploration, mining, archaeology, education training, manufacturing, service chain, call center, business services, public institution, government military and many more.
- Strong Performance with Ultra Low Power Consumption: Intel N4120 processor, four cores, four threads, and thermal design of 10W.
3. 256GB super capacity M.2 SSD for fast read and write speed (read:576MB/s, write: 465MB/s), replaceable, and infinite capacity expansion.
4. RJ45 interface for wired network access, and wireless Wi-Fi 2.4G/5G dual bands and Bluetooth 4.2 for dual-channel max. transfer rate of 433Mbps
5. Built-in one RS-232 serial interface, widely used in industrial control and automation.
6. Three USB 3.0 interfaces to maximize extended USB devices.
7. One full-featured Type C charging interface for audio, video and data transmission.
8. One microSDXC slot for manual backup or migration of data in a network-free environment.
9. Touchpad with left and right buttons, as well as all the left, middle and right buttons on the left-side mouse, a familiar operation allowing users to get started immediately.
10. QWERTY keyboard with a backlit design to meet the emergency needs at night, or in no light or dim light.
11. Active cooling design and PC-level cooling solution.
12. Two copper nuts embedded on the back for fixation in various complex environments.
13. Power indicator, dormancy indicator and RJ45 indicator to keep abreast of the machine at any time.
14. ser-friendly lanyard hole, gifted with a lanyard that can carry 4kg.
15. It is much better than Microsoft Surface Go (8GB/256GB) in terms of overall performance, but it is smaller and more lightweight. It weighs only 440g and can be controlled by one hand.
GPD MicroPC Details
1. Impact resistant ABS Synthetic Resin Shell
The
anti-shock aviation-level ABS synthetic resin LG-DOW 121H is imported
from South Korea, with a thick thickness of 1mm, which is flame
retardant, high-heat resistant, and V-0 fireproof, with a Rockwell
hardness up to 109 R, and bending strength up to 26000kg/cm2. Its
integrity rate reaches 97.63% under the 1.5m drop test.
Its streamlined appearance is matt UV-sprayed, with rounded corners for great affinity and comfortable feel.
The
area of the strip-shaped hollow air inlet on the back is up to 28%, and
the 3mm-high feet makes the bottom air inlet design sleeker.
area of the strip-shaped hollow air inlet on the back is up to 28%, and
the 3mm-high feet makes the bottom air inlet design sleeker.
On
the back, the 45 degree-inclined air outlet protects the external
interfaces from dust accumulation and dissipates heat more smoothly.
the back, the 45 degree-inclined air outlet protects the external
interfaces from dust accumulation and dissipates heat more smoothly.
The non-slip twill groove gives a strong grip.
2. 6 Inch HD WCG Screen
Its 6” high definition (HD) wide
color gamut (WCG) screen, with Corning® Gorilla® Glass 4 has a vividly
colorful, natural, smooth and visible effect.
With the 178 degree view, users can obtain an excellent visual experience at any angle.
With 1280x720 resolution and 3000: 1 static contrast, it displays dedicate and bright colors.
The rotatable axis supports stepless adjustment for the maximum stretch of 150.

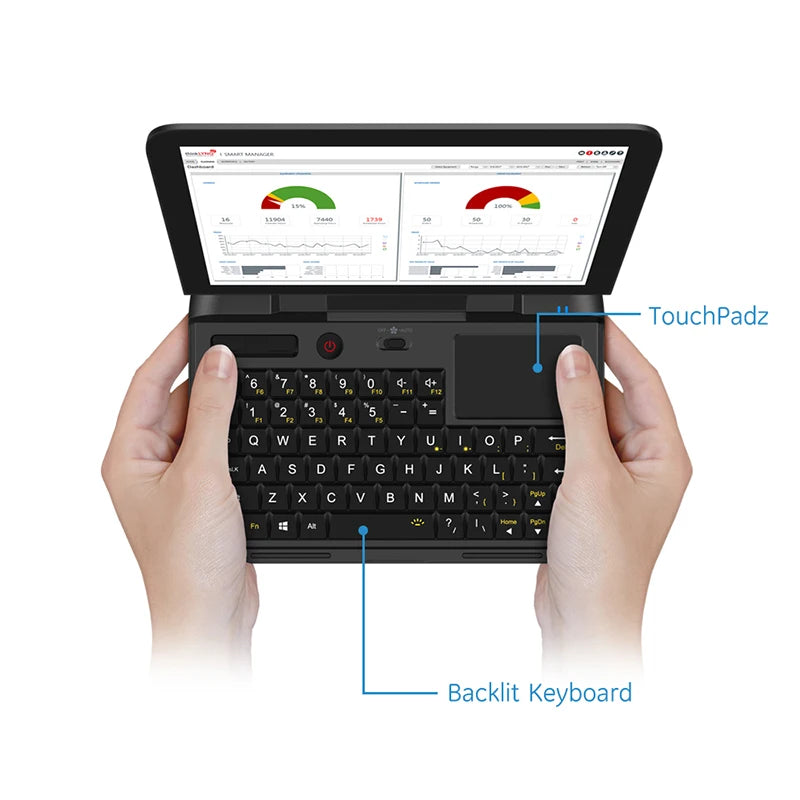

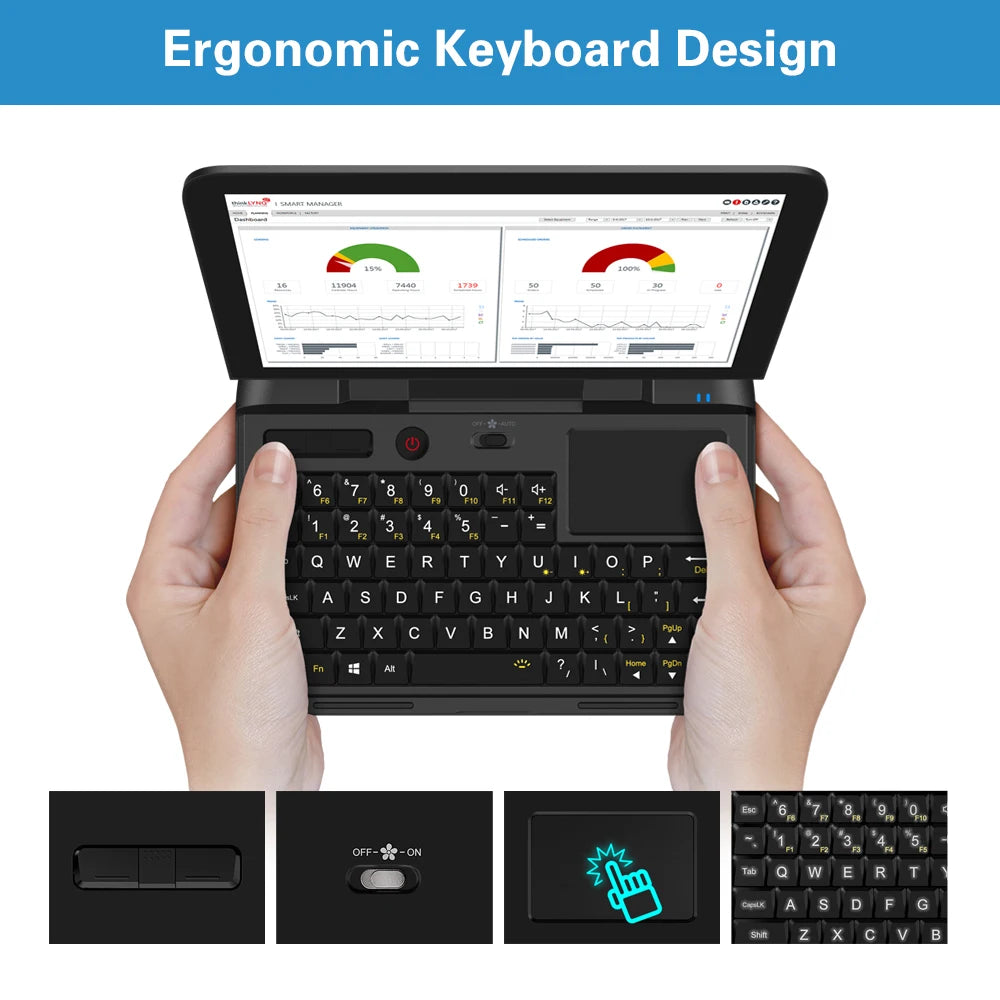

3. Integrated Qwerty Keyboard, Touch pad and 3D mouse
A qwerty keyboard, touchpad, and 3D
mouse are integrated into the C face, which is only 15×9cm in size. The
metallic film button is wedge-shaped designed, which is more ergonomic
and provides an excellent experience for finger pressing.
The qwerty keyboard is backlit to meet the emergency needs at night, or in no light or dim light.
The keyboard layout is more reasonable. You may complete all operations with your left thumb in case of only number inputs.
MicroPC has a built-in touchpad with a
larger operable area, while also supporting the left and right buttons
of the touchpad. In this way, the cursor is slide more accurately
through right thumb.
larger operable area, while also supporting the left and right buttons
of the touchpad. In this way, the cursor is slide more accurately
through right thumb.
The upper left corner of the C face is
the left, middle, and right mouse buttons, with an appropriate width to
assure an unfettered operation.
the left, middle, and right mouse buttons, with an appropriate width to
assure an unfettered operation.
The power key is recessed to avoid
accidental touch. It is extremely convenient to turn on or off the
machine by holding it in the left hand.
accidental touch. It is extremely convenient to turn on or off the
machine by holding it in the left hand.
The fan switch is centered, and the Off and On states are clearly identifiable.
4. Two Cooper Nuts Embedded On The Back
Two copper nuts (suitable for
2.5mm-diameter screws) are embedded on the back for fixing the machine
in various complex environments. You can attach it to any rotatable
hanger, stand, lift, tray, bracket, etc.
2.5mm-diameter screws) are embedded on the back for fixing the machine
in various complex environments. You can attach it to any rotatable
hanger, stand, lift, tray, bracket, etc.
5. Two Cooper Nuts Embedded On The Back
Two copper nuts (suitable for
2.5mm-diameter screws) are embedded on the back for fixing the machine
in various complex environments. You can attach it to any rotatable
hanger, stand, lift, tray, bracket, etc.
2.5mm-diameter screws) are embedded on the back for fixing the machine
in various complex environments. You can attach it to any rotatable
hanger, stand, lift, tray, bracket, etc.
6. RS-232 Interface
The RS-232 serial port is widely used
in industrial instrumentation, mouse, keyboard, printer, etc. Or go to
RS-485 from RS-232 to achieve the data communication at 1200m and
100Kbps.
in industrial instrumentation, mouse, keyboard, printer, etc. Or go to
RS-485 from RS-232 to achieve the data communication at 1200m and
100Kbps.
7. RJ45 Wired Network Access
MicroPC
has built-in Gigabit NIC, and it supports wired network access through
RJ45 interface for the maximum download speed of 125MB/s.
has built-in Gigabit NIC, and it supports wired network access through
RJ45 interface for the maximum download speed of 125MB/s.
8. Wireless 2.4G/5G Dual band Wifi And Bluetooth 4.2
Similarly, in response to Internet of
things applications, MicroPC also has a built-in Bluetooth 4.2 module
that supports IPv6 connectivity options to make data transfer faster.
9. CPU Intel Celeron N4120
GPD MicroPC use Intel 8th Gemini Laks N4120 Embedded processer, reduced package size.
TDP of CPU raise to 10W, compare with
4415y(Microsoft Surface Go), a few advantage in single-core test but a
number of advantage in multi core test.
4415y(Microsoft Surface Go), a few advantage in single-core test but a
number of advantage in multi core test.
Description:
CPU Mark Rating: As of 18th of December 2018 - Higher results represent better performance.
CPU Single Thread Rating: As of 18th of December 2018-Higher results represent better performance.
CPU Value (CPU Mark/$Price): As of 18th of December 2018-Higher results represent better value.
The N4120 processor has a reference
frequency of 1.10 GHz and a pulse frequency of 2.4 GHz, while 4415Y only
supports a reference frequency of 1.6 GHz and no turbo frequency
acceleration. In terms of overall performance, N4100 is better than
4415Y.
frequency of 1.10 GHz and a pulse frequency of 2.4 GHz, while 4415Y only
supports a reference frequency of 1.6 GHz and no turbo frequency
acceleration. In terms of overall performance, N4100 is better than
4415Y.
MicroPC uses 9.5-generation Intel UHD
Graphics 600, supports operating frequency up to 700MHz, and increases
the bandwidth by 33% over the previous generation. It supports 10-bit 4K
VP9 film decoding, while the thermally-designed power consumption is
only 10W, which can be called as a low-power decoder, and ideal for home
theater personal computer (HTPC) and game console. The output of
4K×2K/60p HD video is available via HDMI 2.0 interface.
Graphics 600, supports operating frequency up to 700MHz, and increases
the bandwidth by 33% over the previous generation. It supports 10-bit 4K
VP9 film decoding, while the thermally-designed power consumption is
only 10W, which can be called as a low-power decoder, and ideal for home
theater personal computer (HTPC) and game console. The output of
4K×2K/60p HD video is available via HDMI 2.0 interface.
10. Active Cooling Design
It
applies the PC-level cooling solution with the active cooling design
and high-power turbofan. MicroPC demonstrates better overall performance
than the passively cooled Microsoft Surface Go.
11. Extensible For More Peripheral
Three USB 3.0 interfaces and one Micro
SD slot support up to 4 external storage devices and infinite storage.
It is possible to extend more peripherals through the Hub.

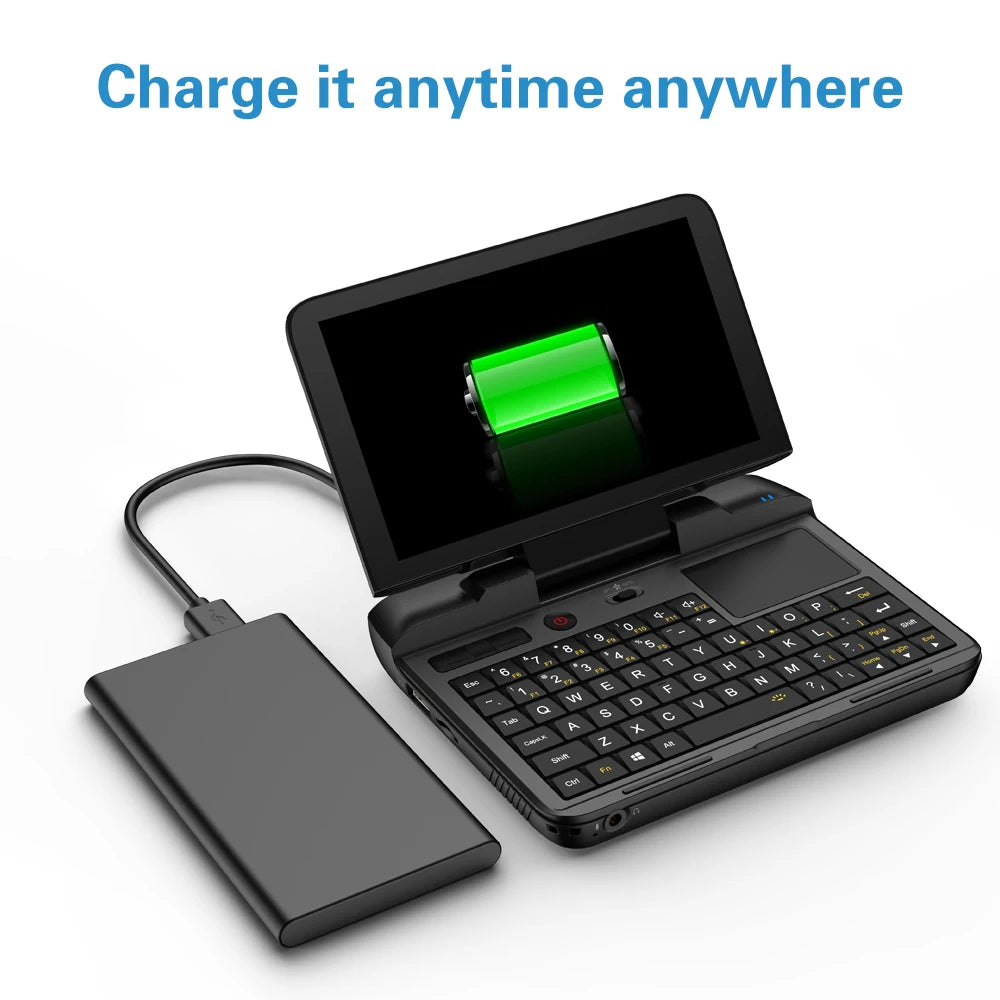

12. Support Mobile Power Charging
MicroPC supports PD 2.0-based fast
charging, which can fill half the battery in 30 minutes. It also
supports all 5V/3A-based mobile phone chargers and portable power
source. Therefore, a charger can be shared between the MicroPC and the
mobile phone. You can easily find the charging source at the airport or
coffee shop (5V/3A charging output standard is available in most
places).
13. Built In Windows 10 Pro, Support Ubuntu
The much-maligned Windows 10 Home is abandoned, and instead, MicroPC will have Windows 10 Pro to give users a new experience.
Furthermore, under the strategic cooperation with Ubuntu MATE, MicroPC will support Ubuntu MATE 18.10.
At that time, you may download the
Ubuntu MATE 18.10 firmware on the GPD official website and crowdfunding
update area. The shipped machine defaults to Windows 10 Pro.
Ubuntu MATE 18.10 firmware on the GPD official website and crowdfunding
update area. The shipped machine defaults to Windows 10 Pro.
| Color | Black |
|---|---|
| Processor Model | Intel Celeron |
| Plugs Type|Ships From | UK | CHINA, AU | CHINA, EU | CHINA, JP | CHINA, CN | CHINA, us | CHINA |
